The goal of the CREWS project is to develop, evaluate, and demonstrate the applicability of methods and tools for cooperative scenario-based requirements elicitation and validation.

Requirements specifications abstractly describe a future real world, usually in a combination of formal, semi-formal and informal representations, which stakeholders and requirements engineers have agreed upon. Involving users and customers during the development of a requirements specification is a generally accepted goal. CREWS perceives the Requirements Engineering (RE) process as a cooperative learning process in which stakeholders and requirements engineers have to understand each other when eliciting and understanding requirements, detecting gaps and inconsistencies by validating the requirements specification, and reconciling differences at technical and social levels.

Scenario-based approaches suppose that mutual learning must be grounded in instance-level use cases or scenarios. A scenario is defined as a sequence of actions or events for a specific case of some generic task that a system is meant to accomplish. It consists of a behaviour and a context describing the agents, the objects, and environmental setting of the system under development. Scenarios promote creativity (e.g. SystemCreativity by Intel, Scenario Engineering by Xerox Parc). However these approaches exist in separate communities of practitioners and researchers and have not found their ways into RE methods.

The CREWS project has developed four related methods and tools for cooperative scenario-based requirements elicitation and validation. Multiple stakeholders are supported in eliciting and negotiating requirements under different perspectives from real world scenes captured in multimedia. Natural language understanding is used to allow stakeholders to elicit requirements from scenarios described by short natural language statements. Validation is facilitated by cooperative requirements animation, and by systematic comparison of the specification with usage test scenarios interactively generated using domain knowledge.

CREWS Research at  Paris 1 - Sorbonne : Objectives, Concepts, and Results

The following presents some of the key objectives, concepts and results of the research developped by Paris 1 - Sorbonne in the CREWS project. The overall approach called CREWS-L'Ecritoire is a requirements elicitation approach based on the exploitation of textual scenarios. The topics covered are the following :

[Objectives of the CREWS-L'Ecritoire Approach]
[Key Concepts and Terminology of the CREWS-L'Ecritoire Approach]
[Results : The CREWS-L'Ecritoire Approach]
[The CREWS-L'Ecritoire Prototype]
[Evaluating the CREWS-L'Ecritoire Approach]
[Engineering the CREWS Method]

• Objectives of the CREWS-L'Ecritoire Approach

The argument of goal-driven approaches is that the rationale for developing a system is to be found outside the system itself, in the enterprise in which the system shall function [Lou94]. RE is therefore concerned with the elicitation of high-level goals to be achieved by the envisioned system [Ant96, Bub94, Dar93], the refinement of these goals [Dar93, Yu94, Rol98] and their operationalisation into system requirements specifying how goals should be accomplished by the proposed system [Ant96]. However, practical experience shows that (a) goals are not given and thus, goal discovery is not an easy task [Rol98, Ant96], (b) application of goal reduction methods [Dar93] to discover component goals of a goal is not as straight-forward as the literature suggests [Bub94, ELE97, Ant96] and (c) eliminating uninteresting and spurious goals is necessary and difficult [Pot97].

Independently of goal modelling, an alternative approach to RE, the scenario-based approach, has been developed. By capturing examples, scenes, narrative descriptions of contexts, use cases and illustrations of agent behaviours, scenarios have proved useful in requirements elicitation in a number of ways : to elicit requirements in envisioned situations [Pot94], to help in the discovery of exceptional cases [Pot94, Rol98, Sut98], to derive conceptual object-oriented models [Dan97, Rum91, Jac95, Rub92], to understand needs through scenario prototyping [Hsi94], to reason about design decisions [Car95, You87] and so on. The argument is that typical scenarios are easier to get in the first place than goals. Goals can be made explicit only after deeper understanding of the system has been gained. The industrial practice survey conducted by the CREWS consortium confirms that scenarios are useful in particular when abstract modelling fails [Wei98]. In addition, since scenarios describe concrete behaviours, they capture real requirements. However, because they deal with examples and illustrations, scenarios are inherently partial and only provide restricted requirements descriptions which need to be generalised to obtain complete requirements.

In order to overcome some of the deficiencies and limitations of goal-driven and scenario-based approaches used in isolation, some proposals have been made recently to couple goals and scenarios together. In [Dan97, Jac95, Lei97, Poh97] goals are considered as contextual properties of use cases whereas in [Coc95] they are used as a means to structure use cases. The goal scenario combination has been used to operationalise goals [Ant96, Hol90, Pot94, Rol98], to check whether or not the current system usage captured through multimedia scenarios fulfils its expected goals [Hau98], to infer goals specifications from operational scenarios [Vla95] and to discover new goals through scenario analysis [Rol98].

The CREWS-L’Ecritoire approach [Rol97, Rol98] developed within the CREWS ESPRIT project uses a bi-directional coupling allowing movement from goals to scenarios and vice-versa. The complete solution is in two parts : when a goal is discovered, a scenario can be authored for it and once a scenario has been authored, it is analysed to yield goals. By exploiting the goal-scenario relationship in the reverse direction, i.e. from scenario to goals, the approach pro-actively guides the requirements elicitation process. In this process, goal discovery and scenario authoring are complementary steps and goals are incrementally discovered by repeating the goal-discovery, scenario-authoring cycle.

[Top]

• Key Concepts and Terminology of the CREWS-L'Ecritoire Approach

A goal is defined as "something that some stakeholder hopes to achieve in the future" [Pli98]. In our approach, a goal  is expressed as a clause with a main verb and several parameters, where each parameter plays a different role with respect to the verb. A detailed description of the goal structure can be found in [Rol98]. An example of a goal expressed in this structure is the following :

Provide _verb (efficiently) _quality (electricity) _object (from PPC producer) _source (to our non eligible customers) _beneficiary (using PPC network) _means (in a normal way) _manner

Requirement chunks classification and abstraction levels : We have introduced three levels of abstraction called contextual, functional, and physical. The contextual level identifies the services that a system should provide to an organisation and their rationale. The functional level focuses on the interactions between the system and its user to achieve the needed services. Finally, the physical level deals with the actual performance of the interactions. Each level corresponds to a type of requirement chunk. As a result, we organise the collection of requirements in a three level abstraction hierarchy.

Relationships between requirement chunks: There are three types of relationships among Requirement Chunks (RC) namely, the composition, alternative, and refinement relationships. The first two of these lead to a horizontal AND/OR structure between RCs. These are extensions of conventional AND/OR relationships between goals. AND relationships among RCs link together those chunks that require each other to define a completely functioning system. RCs related through OR relationships represent alternative ways of fulfilling the same goal. The third kind of relationship relates requirement chunks at different levels of abstraction. The refinement relationship establishes a vertical link between requirement chunks.

[Top]

• Results : The CREWS-L'Ecritoire Approach

The exact sequence of steps of the CREWS-L’Ecritoire process is as follows :

1. Initial Goal Identification
repeat
       2. Goal Analysis
       3. Scenario Authoring
       4. Goal Elicitation through Scenario Analysis
until all goals have been elicited

The guidance mechanism for goal analysis is based on a linguistic analysis of goal statements. It helps in reformulating a narrative goal statement as a goal template as introduced in the previous section. The mechanism for scenario authoring combines style/content guidelines and linguistic devices. The former advise authors on how to write scenarios whereas the latter provides semi-automatic help to check, correct, conceptualise, and complete a scenario. Finally, for goal elicitation through scenario analysis, we defined enactable rules offering three different goal discovery strategies, one for each of the relationships between <goal-scenario> pairs. namely, refinement strategy, composition strategy, and alternative strategy. The first of these discovers goals at a lower level of abstraction than a given goal ; the second discovers goals ANDed to the original one ; the last discovers goals ORed to the original goal.

[Top]

• The CREWS-L'Ecritoire Prototype

The requirements elicitation process can be viewed as a flow of steps : each step starts with a given goal and describes a scenario as a possible concretisation of the goal. Clearly, a step results in a complete requirement chunk. In order to progress, a new goal has to be determined. This is done in the goal discovery activity through an analysis of the scenario. Thus, it can be said that the discovery activities regulate the flow of authoring activities.

It has been shown that flow control is based on strategies [Dar93, Pot94, Sis97]. We identify three strategies, namely refinement, composition and alternative strategies. Upon the completion of a step, any strategy can be dynamically chosen. Thus, there is no statically imposed linear order of the flow of steps. This flexibility in strategy selection is the main advantage of the step-flow process. However, it shall be noticed that goal discovery in this approach is about sub-goal discovery, not super-goal discovery.

The three discovery strategies exploit the three types of relationships identified among requirement chunks in the previous section. Therefore, given a pair <G, Sc> (where G is a goal, and Sc is a scenario) :

- the composition strategy looks for goals Gi which are ANDed to G,
- the alternative strategy searches for goals Gj which are ORed to G,
- the refinement strategy aims to discover goals Gk at a lower level of abstraction than G.

We associate guiding rules with each of the strategies to discover new goals. Therefore, composition (alternative) rules help in discovering goals ANDed (ORed) to G. All these goals are at the same level of abstraction. The <G,Sc> chunk is processed by the refinement rules to provide goals at a lower level of abstraction than G. This is done by considering each interaction in Sc as a goal. Thus as many goals are produced as there are interactions in Sc.

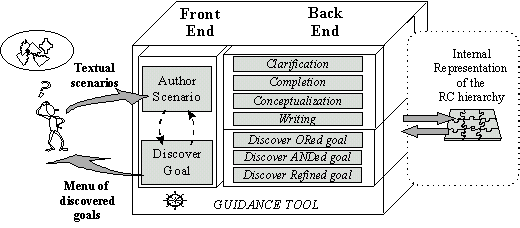

As shown in the figure above, the rules are implemented in the CREWS-L’Ecritoire software environment and automatically enacted on request [Taw97]. This facilitates the use of the approach and limits the effort required to apply it. Using CREWS-L’Ecritoire, the RCA is automatically guided in a flexible manner to elicit requirements systematically.

[Top]


• Evaluating the CREWS-L'Ecritoire Approach

• WHAT should be evaluated ?
• WHEN should evaluations be done ?
• HOW should the evaluations be performed ?

The WHEN question
To perform the evaluations we conducted experiments of four kinds : workshops, empirical study, case study and tutorial. We conducted three workshops with the participation of 52 system development experts drawn from French companies [Rol98]. Two empirical studies, one on the use of the 'scenario authoring approach’ [Ben99] and a second one on the use of the ‘goal/requirement discovery approach’ [Taw00] were performed with students, 69 in the first case and 41 in the second one. One industrial case study on ‘business process reengineering’ was conducted in a large electricity supply company [Rol99a]. Finally 6 days of tutorials, based on an intensive use of the tool environment, were performed with different groups of either students or professionals [Par99].

The HOW question
In order to determine whether a hypothesis could be validated or not, we have adopted an approach based on metrics. We identified evaluation criteria and defined metrics in order to measure each hypothesis in a given experiment. This means that the evaluation frame is a 5-tuple of the form :

Overview of CREWS-L’Ecritoire evaluation approach

Evaluation Results
A complete report of the evaluation results can be found in [Par99]. The following list provides you with samples of our main findings:

• Globall approach : Very positive evaluation (5.6 on a scale of [1-7]) of the overall usefulness of the approach
• Scenario Authoring : The proportion of subjects describing correctly more than half of scenario actions is multiplied by 2 owing to style or content guidelines
• Goal Discovery : 93% of subjects double the number of discovered goals using rule A1
• Goal Discovery : 92% of subjects correct their mistake of system functions discovery using rules C1 & C2.
• Organising the Goal-Scenario Collection : The grading of requirements organisation usefulness by subjects is 5.46 (over 7)
• Guiding the Requirements Elicitation process in a Computer Based Environment : 87 % of subjects mention the methodological support as a major potential benefit of the approach
• Working in a Top-Down Manner : 80% of the ELEKTRA goal hierarchy was discovered starting with one single requirement chunk.

Workshops (ps) (pdf)

Empirical evaluation of scenario authoring (ps) (pdf)

Empirical evaluation of goal formulation and discovery (ps) (pdf) [shorter version (ps) (pdf)]

ELEKTRA case study (ps) (pdf)

Overall evaluation results, including tutorial results (ps) (pdf)

• Engineering the CREWS Method

In fact the entire process modelling community realised quite early that even though process models were prescriptive, in actual practice departures from the prescription occurred [Hidd94, Rus95, Wije90, Aae92, Your92]. Therefore, a concerted effort was put in to allow process models to respond to those departures. One approach was to assume prescriptive models and then, modify them to accommodate real processes. This modification could be achieved in two ways. First the extent of deviations from the prescription that could be allowed was modelled as constraints [Cug95, Cug96, Cug98]. Any actual deviation that satisfied the constraint was therefore manageable and the process enactment mechanism could handle it. This way of handling deviations took the prescriptive approach to its logical conclusion : it prescribed the deviations allowed in a prescription. The second way of handling deviations is to allow changes to be made in the prescription as and when they are needed [Dow94, SiS96, Jac92, Fin94, Ban93, Bel94]. Thus, a dynamic change of the basic prescription is allowed.

An altogether different approach was taken in the contextual model [Gha97, Rol95, Poh96, Bub94]. Here the attempt was to relax the prescription given by a process model. Thus, the process model did not always specify what must be done but contained some specification of what can be done. The process model therefore, contained a number of alternative ways of doing a task and a selection of the particular alternative was done dynamically, depending upon the situation in which the product was found. However, the contextual model could consist of both alternatives as well as prescriptions. Whenever such alternatives were available, the net effect was that the process model could be dynamically built, even as the process was being performed. The major difference between the two approaches is that whereas handling departures from prescriptions is an exception handling activity in the former, selection from alternatives in the latter is a normal activity envisaged in the process model itself and supported by a dynamic selection mechanism. Thus, support for real processes is provided in a more natural way.

CREWS proposes to relax the prescription of a process model even further [Rol00, Ral99]. Our proposal is based on our experience with the contextual model that we conducted with four groups of master students. The experiment consists of using the ten methods described with the contextual model in [Pli94] to develop application case studies within the process centred environment MENTOR [Sis96]. Our experience was that a key discriminant factor in real processes is the product situation. This situation has a strong bearing in selecting the task best suited to handle it and also the strategy to be adopted in carrying out this task. For example, consider a process for doing requirements engineering using goal-scenario coupling. Assume that a goal G has been elicited. Now, it is possible to either explore alternative goals of G or to write a scenario for it. Thus, the process model must reflect this choice and the requirements engineer would dynamically choose between one of these alternatives. It can be seen that G provides a basis for a discriminant choice in what task is to be done next. Now, consider that a fully developed scenario has been written out and goals are to be determined by scenario analysis. That is, the next task to be done is known. However, it is possible to discover goals that are exceptions or obstacles to G or sub-goals of G using the alternative or the composition discovery strategies. Again, these strategies for eliciting goals need to be reflected in the process model so that the right one can be dynamically chosen depending on the nature of the scenario. Thus, the product situation also provides a basis for a discriminant choice in what strategy is to be adopted in performing a task. Evidently, a process model that captures all alternatives of tasks and strategies is needed to support processes. Such a model needs to be backed up by a dynamic selection mechanism of tasks and strategies. In the paper we propose to represent task and strategies alternatives as a labelled directed graph called a map and provide support in alternative selection through guidelines. The CREWS method has been modelled following these lines and implemented in an electronic format available at the URL : http://panoramix.univ-paris1.fr/CRINFO/CMB/.

 The salient features of our approach are :

- explicit recognition of the role of strategies in process modelling,
- a non-prescriptive model of strategies and tasks containing alternatives only from which real processes can be built,
- dynamic process construction is the rule rather than an exception.

 There are three guidelines associated with the map :

- intention selection guidelines for determining all succeeding intentions of a given one,
- strategy selection guidelines for determining the strategies from which one is selected,
- intention achievement guidelines for defining the way in which an intention can be achieved. Thereafter, the enactment mechanism is invoked to actually carry out the tasks.

[Top]

The CREWS Consortium


RWTH, Aachen, Germany (Coordinating Partner) Prof. M. Jarke, Dr. K. Pohl City University, London, United Kindom Prof. A.G. Sutcliffe Facultés Universitaires Notre-Dame de la Paix, Namur, Belgium Prof. P.Y. Schobbens Université Paris 1-Sorbonne, Paris, France Prof. C. Rolland

Staff

Colette Rolland
Carine Souveyet
Jolita Ralyté
Mustapha Tawbi
Camille Ben Achour

CREWS Reports
delivered by CRI, University Paris 1 - Sorbonne
[All the CREWS reports can also be downloaded from the CREWS website.]

2000

Evaluating the CREWS-L'Ecritoire Requirements Elicitation Process [ps][pdf]

Mustapha Tawbi, Fernando Velez, Carine Souveyet, Camille Ben Achour
Submitted to REFSQ'2000, International Workshop on Requirements Engineering Foundations for Sofwtare Quality.

From Conceptual Modelling to Requirements Engineering [ps][pdf]

C. Rolland, N. Prakash
Annals of Software Engineering, Special Issue on Comparative Studies of Engineering Approaches for  Software Engineering; to appear.

A multi –Model View of Process Modelling [ps][pdf]

C. Rolland, N. Prakash. A. Benjamen
Requirements Engineering Journal, to appear.

1999

• Report on the CREWS-C2 Evaluations [ps][pdf]

Paris team
Internal report N° 99-18, ESPRIT project CREWS N°21.903. 1999.
• Reusing Scenario Based Approaches in Requirement Engineering Methods: CREWS Method Base [ps][pdf]

J. Ralyté.
REP’99, 1st International Workshop on the Requirements Engineering Process, Florence, Italy, 2nd-3rd September 1999.
• Method Enhancement by Scenario Based Techniques [ps][pdf]

J. Ralyte, C. Rolland, V. Plihon
11th Conference on Advanced Information Systems Engineering, CAiSE'99,  Heidelberg, Germany June 14-18, 1999
• Guiding the Process of Requirements Elicitation Through Scenario Analysis: Results of an Empirical Study. [ps][pdf]

M. Tawbi, C. Ben Achour, F. Vélez
First International Workshop on the Requirements Engineering Process - Innovative Techniques, Models, Tools to support the RE Process, Florence, Italy, 2-3 September 1999
• Bridging the Gap between Users and Requirements Engineering: the Scenario-Based Approach [ps][pdf]

C. Ben Achour, C. Souveyet, M. Tawbi.
International Journal of Computer Systems Science & Engineering, special issue : Object-Oriented Information Systems, Vol 5 N°1, 1999.
• Experience With Goal-Scenario Coupling In Requirements Engineering [ps][pdf]

C. Rolland, G. Grosz, R. Kla
Fourth IEEE International Symposium on Requirements Engineering (RE'99), University of Limerick, Ireland, 7-11 June 1999
• Use Case Authoring Guidance : Results of an Empirical Study [ps][pdf]

C. Ben Achour, C. Rolland, N.A.M. Maiden, C. Souveyet
Fourth IEEE International Symposium on Requirements Engineering (RE'99), University of Limerick, Ireland, 7-11 June 1999
• Guiding Requirement Engineering with a Process Map [ps][pdf]

Mustapha Tawbi, Carine Souveyet
Proceedings of MFPE'99: Second International Workshop on The Many Facets of Process Engineering - From Theory to Practice, Tunis, Tunisia, 12-14 May 1999.


• Guiding Goal Modelling Using Scenarios [ps][pdf]

C. Rolland, C. Souveyet, C. Ben Achour.
Transaction of Software Engineering: Special Issue on Scenario Management, Vol. 24, No. 12,1998.
• Writing and Correcting Textual Scenarios for System Design [ps][pdf]

Camille Ben Achour
International Workshop on Natural Language and Information Systems (NLIS'98), 28th August 1998, Vienna, Austria, 1998.
• Main Concepts for Cooperative Work Place Analysis [ps][pdf]

S. Nurcan.
Telecooperation Conference of the 15th IFIP World Computer Congress 1998, 31 August-4 September 1998, Vienna, Austria, 1998.
• A Proposal for Improving the Quality of the Organisation of Scenario Collections [ps][pdf]

C. Ben Achour, C. Rolland, C. Souveyet.
Proceedings of the REFSQ'98 Workshop on requirements engineering foudnation for software quality, Pisa, June 1998.
• L'ECRITOIRE a Tool to Support a Goal-Scenario Based Approach to Requirements Engineering [ps][pdf]

M. Tawbi, C. Souveyet, C. Rolland.
Internal report N° 98-23, ESPRIT project CREWS N°21.903. 1998.
• A Reuse-Oriented Approach for the Construction of Scenario Based Methods [ps][pdf]

V. Plihon, J. Ralyté, A. Benjamen, N.A.M. Maiden, A. Sutcliffe, E. Dubois, P. Heymans.
International Software Process Association's 5th International Conference on Software Process (ICSP'98), Chicago, Illinois, USA, 14-17 June 1998.
• Are Methods Really Useful ? [ps][pdf]

C. Rolland.
20th International Conference on Software Engineering ICSE'98, Kyoto, Japan, April 1998.
• Formalising Guidance for the CREWS Goal-Scenario Approach to Requirements Engineering [ps][pdf]

S. Si Saïd, C. Rolland.
Eighth European - Japanese Conference on Information Modelling and Knowledge Bases. May 25-29, Vamala, Finland, 1998.
• Process Centred Approach for Developing Tool Support of Situated Methods [ps][pdf]

C. Souveyet, M. Tawbi.
9th International DEXA Conference on Database and Expert Systems Applications, Vienna, Austria, August 1998.
• A Comprehensive View of Process Engineering (CREWS-98-18)[ps][pdf]

C. Rolland.
10th International Conference CAiSE'98, B. Lecture Notes in Computer
Science 1413, Pernici, C. Thanos (Eds), Springer. Pisa, Italy, June 1998.
• Guiding Scenario Authoring [ps][pdf]

C. Ben Achour
Eighth European - Japanese Conference on Information Modelling and Knowledge Bases. Vamala, Finland, May 25-29, 1998.
• Specifying the reuse context of Scenario Method Chunks [ps][pdf]

C. Rolland, V. Plihon, Y. Ralyté
10th International Conference CAiSE'98, B. Lecture Notes in Computer Science 1413, Pernici, C. Thanos (Eds), Springer, pp. 191. Pisa, Italy, June 1998.
• Describing business processes with a guided use case approach [ps][pdf]

S. Nurcan, G. Grosz, C. Souveyet
10th International Conference CAiSE'98, B. Lecture Notes in Computer Science 1413, Pernici, C. Thanos (Eds), Springer, pp. 339-362. Pisa, Italy, June 1998.
• Guiding the construction of textual use case specifications [ps][pdf]

Colette Rolland, Camille Ben Achour
Data & Knowledge Engineering Journal, Vol 25, N°1-2, pp. 125-160, (ed. P. Chen, R.P. van de Riet), North Holland, Elsevier Science Publishers. March 1998.

• A Meta-Model for Goal-Driven Cooperative Work Processes [ps][pdf]

S. Nurcan, C. Rolland
Workshop on the Many Facets of Process Engineering (MFPE’97), Gammarth, Tunis, September 22-23, 1997.
• Introducing Genericity and Modularity of Textual Scenario Interpretation in the Context of Requirements Engineering [ps][pdf]

Camille Ben Achour, Colette Rolland
Internal report N° 97-15, ESPRIT project CREWS N°21.903. 1997.
• Scenario Use in European Software Organizations - Results From Site Visits and Questionnaires [ps][pdf]

Matthias Jarke, Klaus Pohl, Peter Haumer, Klaus Weidenhaupt, Eric Dubois, Patrick Heymans, Colette Rolland, Camille Ben Achour, Corinne Cauvet, Jolita Ralyté, Alistair Sutcliffe, Neil Maiden, Shailey Minocha
Internal report N° 97-10, ESPRIT project CREWS N°21.903. 1997.
• Linguistic Instruments for the Integration of Scenarios in Requirement Engineering [ps][pdf]

Camille Ben Achour
Proceedings of the Third International Workshop on Requirements Engineering: Foundation for
Software Quality (REFSQ'97), Barcelona, Catalonia, June 16-17, 1997
• Scenario Integration into Requirements Engineering Methods [ps][pdf]

Jolita Ralyte and Camille Ben Achour
Workshop on the Many Facets of Process Engineering (MFPE'97), Gammarth, Tunis, Sept. 22-23, 1997.
• Meta-modelling for cooperative processes [ps][pdf]

Selmin Nurcan and Colette Rolland
Seventh European-Japanese Conference on Information Modeling and Knowledge Bases, Toulouse, France, May 27-30, 1997
• A Primer for Method Engineering [ps][pdf]

Colette Rolland
INFORSID Conference (INFormatique des ORganisations et Systèmes d'Information et de Decision) Toulouse, France, June 10-13, 1997

• A Proposal for a Scenario Classification Framework [ps][pdf]

C. Rolland, C. Ben Achour, C. Cauvet, J. Ralyté, A. Sutcliffe, N.A.M. Maiden, M. Jarke, P. Haumer, K.Pohl, E. Dubois, P. Heymans
Requirements Engineering Journal, Vol. 3, No. 1, Springer Verlag, pp.23-47, 1998

References
[Follow the links to identify quoted papers which are part of the CREWS reports]

[Ant94] A.I.Anton , W.M.Mc Craken, C. Potts, Goal decomposition and scenario analysis in business process reengineering, Advanced information System Engineering, 6^th Int. Conf. CaiSE’94 Proc., Utrecht, The Netherlands, 6-10 June 1994, pp 94-104, 1994.

[Ant96] A.I. Anton, Goal based requirements analysis. Proceedings of the 2^nd International Conference on Requirements Engineering ICRE’96, pp. 136-144, 1996.

[Ben99] C. Ben Achour, C. Rolland, N.A.M. Maiden, C. Souveyet. Use case authoring guidance : results of an empirical study. Fourth IEEE International Symposium on Requirements Engineering (RE'99), University of Limerick, Ireland, 7-11 June 1999

[Bub94] J. Bubenko, C. Rolland, P. Loucopoulos, V De Antonellis, Facilitating ‘fuzzy to formal’ requirements modelling. IEEE 1^st Conference on Requirements Engineering, ICRE’94 pp. 154-158, 1994.

[Car95] J. M. Caroll, The scenario perspective on system development. In Scenario-Based Design: Envisioning Work and Technology in System Development, Ed J.M. Carroll, 1995.

[Coc95] A. Cockburn, Structuring use cases with goals. Technical report. Human and Technology, 7691 Dell Rd, Salt Lake City, UT 84121, HaT.TR.95.1, http://members.aol.com/acocburn/papers/usecases.htm, 1995.

[Dan97] B. Dano, H. Briand, F. Barbier, A use case driven requirements engineering process. Third IEEE International Symposium On Requirements Engineering RE'97, Antapolis, Maryland, IEEE Computer Society Press, 1997.

[Dar93] A. Dardenne, A. van Lamsweerde, S. Fickas, Goal directed requirements acquisition. Science of Computer Programming, 20(1-2), pp.3-50, April 1993.

[ELE97] ELEKTRA consortium, Esprit Program 7.1, Technologies for business processes, best business practice pilots. Elektra : Electrical Enterprise Knowledge For Transforming Applications. (Proj. N°22927) http ://www.singular.gr/elektra, January 1997 to June 1999.

[Gut93] J.V. Guttag and J.J. Horning, LARCH : language and tools for formal specification, Springer-verlag, 1993.

[Hau98] Peter Haumer, Klaus Pohl, Klaus Weidenhaupt, Requirements elicitation and validation with real world scenes. IEEE Transactions on Software Engineering, Vol. 24, No. 12, Special Issue on Scenario Management, December 1998.

[Hol90] C. H. Holbrook, A scenario - based methodology for conducting requirements elicitation. ACM SIGSOFT, Software Engineering Notes Vol. 15, N° 1, pp. 95-104. January 1990.

[Hsi94] P. Hsia, J. Samuel, J. Gao, D. Kung, Y. Toyoshima, C. Chen, "Formal Approach to Scenario Analysis", IEEE Software, pp. 33-41, 1994.

[Jac95] I. Jacobson, The use case construct in object-oriented software Engineering. In ‘’Scenario-based design: envisioning work and technology in system development’’, John M. Carroll (ed.), John Wiley and Sons, 309-336, 1995.

[Jon90] C.B. Jones, "Systematic software development using VDM".  2^nd edition, Prentice Hall, 1990

[Lei97] J.C.S. do Prado Leite, G. Rossi, F. Balaguer, A. Maiorana, G. Kaplan, G. Hadad and A. Oliveros, Enhancing a requirements baseline with scenarios. In Third IEEE International Symposium On Requirements Engineering RE'97, Antapolis, Maryland, IEEE Computer Society Press, pp. 44-53, 1997.

[Lou94]  P. Loucopoulos, The F³ (From Fuzzy to Formal) view on requirements engineering. Ingénierie des Systèmes d’Information, Vol. 2, N° 6, pp. 639-655, 1994.

[Par99] Paris team, Report on the CREWS-C2 evaluations. CREWS internal report N°99-18, ESPRIT project CREWS N°21.903. 1999.

[Pli98] V. Plihon, J. Ralyté, A. Benjamen, N.A.M. Maiden, A. Sutcliffe, E. Dubois, P. Heymans, A reuse-oriented approach for the construction of scenario based methods. Proceedings of the International Software Process Association’s 5th  International Conference on Software Process (ICSP’98), Chicago, Illinois, USA, 14-17 June 1998.

[Poh97] K. Pohl, P. Haumer, Modelling contextual information about scenarios. Proceedings of the Third International Workshop on Requirements Engineering: Foundations of Software Quality REFSQ’97, Barcelona, pp.187-204, June 1997.

[Pot94]  C. Potts, K. Takahashi, A.I. Anton, Inquiry-based requirements analysis. In IEEE Software 11(2), pp. 21-32, 1994.

[Pot97]  C. Potts, Fitness for use : the system quality that matters most. Proceedings of the Third International Workshop on Requirements Engineering: Foundations of Software Quality REFSQ’97 , Barcelona, pp. 15-28, June 1997.

[Ral99] J. Ralyté. Reusing scenario based approaches in requirement engineering methods: CREWS method base. Proceedings of REP’99, 1st International Workshop on the Requirements Engineering Process, Florence, Italy, 2nd-3rd September 1999.

[Rol97] C. Rolland, C. Ben Achour, Guiding the construction of textual use case specifications. Data & Knowledge Engineering Journal Vol. 25 N° 1, pp. 125-160, (ed. P. Chen, R.P. van de Riet) North Holland, Elsevier Science Publishers. March 1997.

[Rol98] C. Rolland, C. Souveyet, C. Ben Achour. Guiding goal modelling using scenarios. IEEE Transactions on Software Engineering, Special Issue on Scenario Management, Vol. 24, No. 12, Dec. 1998.

[Rol99a] C. Rolland, G. Grosz, R. Kla, Experience with goal-scenario coupling in requirements engineering. Fourth IEEE International Symposium on Requirements Engineering (RE'99), University of Limerick, Ireland, 7-11 June 1999

[Rol00] C. Rolland, N. Prakash, A. Benjamen. A multi-model view of process modelling. To be Published in Requirements Engineering Journal, 1999.

[Rub92] Rubin K.S., Golberg A. Object behavior analysis, Communications of the ACM, 35(9), Sept 1992, pp 48-62.

[Rum91] J. Rumbaugh, M. Blaha, W. Premerlani, F. Eddy, and W. Lorensen, ‘‘Object-oriented modelling and design’’. Prentice Hall, 1991.

[Sis97] S. Si Said, Guidance for requirements engineering processes. Proceedings of the 8^th International Conference and Workshop on Database and Experts System Application DEXA’97, Toulouse, 1-5 September 1997.

[Spi92] J.M. Spivey, "The Z notation – a reference manual", 2nd edition, Prentice Hall, 1992

[Sut98] A.G. Sutcliffe, N.A.M. Maiden, S. Minocha, D. Manuel, Supporting scenario-based requirements engineering. Transaction of Software Engineering: Special Issue on Scenario Management, Vol. 24, No. 12, December 1998.

[Taw98] M. Tawbi, C. Souveyet, C. Rolland, L’ECRITOIRE a tool to support a goal-scenario based approach to requirements engineering, Submitted to Information and Software Technology journal, Editor : Martin Shepperd, Puplisshers : Elsevier Science B.V, 1998

[Taw00] M. Tawbi, F. Velez, C. Souveyet, C. Ben Achour, Evaluating the CREWS-L'Ecritoire requirements elicitation process. Submitted to REFSQ'2000, International Workshop on Requirements Engineering Foundations for Sofwtare Quality.

[Vla95]  A. Van Lamsweerde, R. Dairmont, P. Massonet, Goal directed elaboration of requirements for a meeting scheduler : problems and lessons learnt, in Proc. Of RE’95 – 2^nd Int. Symp. On Requirements Engineering, York, IEEE, 1995, pp 194 –204.

[Wei98] K. Weidenhaupt, K. Pohl, M. Jarke, P. Haumer, Scenario usage in system development : a report on current practice. IEEE Software, March-April 1998.

[You87] M. R. Young, P. B. Barnard, The use of scenarios in human-computer interaction research: turbocharging the tortoise of cumulative science. CHI + GI 87 Human Factors in Computing Systems and Graphics Interface, Toronto, 1987.

[Yu94] E. Yu, J. Mylopoulos, Using goals, rules and methods to support reasoning in business process reengineering. Proceedings of the 27^th Hawaii International Conference System Sciences, Maui, Hawaii, January 4-7, Vol. IV pp. 234-243, 1994.

Last update : 15 Febr. 2000
This page is maintained by Camille Ben Achour
